LAB599 TX-500MP

Ultra Compact Manpack All-Mode 10W HF/50MHz SDR QRP Transceiver

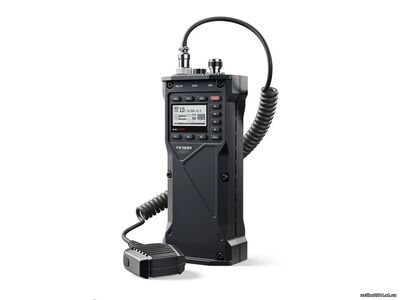

TX-500MP with Battery Option Model

The TX-500MP transceiver is a compact, portable HF radio in a manpack form factor, designed for professionals and enthusiasts who prioritize mobility, operational efficiency, and extended autonomy. The transceiver is based on the time-proved and reliable TX-500 platform.

Transceiver is engineered for operation in harsh conditions: a durable, aviation grade aluminum alloy housing precisely milled to protect against mechanical damage, and the absence of through-holes prevents dust and moisture ingress. Its uniquely low power consumption — up to 100 mA in receive mode — and the BP-550 battery pack provide extended autonomous operation.

The transceiver combines extensive functionality with ease of use for both professionals and less experienced users, thanks to its channel mode with pre-programmed settings. The built-in automatic antenna tuner ensures compatibility with various antennas, including portable ones, enabling quick readiness for transmission, which is especially critical in emergency situations.

The TX-500MP transceiver is an ideal solution for tactical missions, rescue operations, and expeditions to remote or inaccessible areas.

General Features:

• Frequency range: 0.5 — 56.0 MHz;
• Supported modes: SSB, CW, AM, FM, DIG;
• Built-in automatic antenna tuner;
• Frequency stability: ±0.5 ppm (from -10°C to +60°C);
• High-performance 32-bit floating-point DSP processor;
• Power consumption in receive mode — up to 100 mA
• (with screen backlight, no preamplifier, no signal);
• External power supply: DC 9-15V, 1 to 3A in transmit mode;
• High-contrast monochrome LCD display, resolution: 192×96 pixels;
• 100 programmable channels (frequency, modulation, etc.);
• PC software for channel programming;
• Operating temperature range: -10°C to +60°C;
• Dimensions (L × W × H): 226 × 90 × 31 mm;
• Dimensions with battery pack (L × W × H): 226 × 90 × 62 mm;
• Weight (without battery pack): 0.55 kg;
• Weight with battery pack and cells: 1.18 kg.

Receiver:

• Continuous reception frequency range: 0.5 – 56.0 MHz;
• Sensitivity (MDS) -136 dBm (nominal, with preamplifier);
• Quadrature mixer with down-sampling;
• Switchable low-noise 18 dB preamplifier and attenuator;
• 4 fixed digital filters;
• Automatic tone noise filter;
• Noise suppression and impulse noise reduction;
• Audio output for external speaker, 3 W nominal.

Transmitter:

• Transmission frequency range: 1 — 30 MHz with ATU; 45 — 56 MHz;
• Adjustable power output: 1 – 10 W (1.5 – 30 MHz); 1 – 7 W (45 – 56 MHz);
• Maximum emission bandwidth: 12 kHz;
• Reliable final amplifier stage with SWR and overheating protection;
• Carrier suppression: >50 dB nominal;
• Harmonic/spurious emissions: >50 dB below carrier;
• Speaker-microphone with PTT;
• 2 fixed digital filters;
• Digital speech compressor.



TX-500MP Package Includes:

1. HSM-500-GX16 Handheld Speaker-Microphone — 1 pc.
2. AD-511 PWR/DATA/CW Adapter — 1 pc.
3. AD-502 CAT-USB Adapter — 1 pc.
4. AD-504 Power Cable — 1 pc.
5. Battery Pack BP-550 (Batteries Not Included) — 1 pc.
6. Cable UCB-C (C-C) — 1 pc.
